Insulated Copper Tube |
|
‘‘‘‘
|

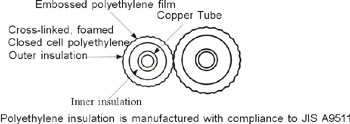

Insulated Copper Tube for Air Conditioning
KENT Pair Coil Specifications |
|
Pair Coil Description |
Pair Coils
per carton |
Carton Dimensions
Pair Coils Length |
|
Copper tube outside
(inch) |
diameter
x wall thickness
(mm) |
(20mm) |
(30mm) |
|
1/4-3/8 |
6.35x0.81-9.52x0.81 |
1 |
57x18x57 |
68x18x68 |
|
1/4-1/2 |
6.35x0.81-12.70x0.81 |
1 |
59x19x59 |
70x19x70 |
|
1/4-5/8 |
6.35x0.81-15.88x1.02 |
1 |
72x20x72 |
83x22x83 |
|
3/8-1/2 |
9.52x0.81-12.70x0.81 |
1 |
61x19x61 |
72x19x72 |
|
3/8-5/8 |
9.52x0.81-15.88x1.02 |
1 |
72x20x72 |
83x22x83 |
|
3/8-3/4 |
9.52x0.81-19.05x1.14 |
1 |
75x22x75 |
87x22x87 |
|
1/2-3/4 |
12.70x0.81-19.05x1.14 |
1 |
75x22x75 |
87x22x87 |
|
KENT Single Coil Specifications |
|
Single Coil
Description |
Single Coils
per carton |
Carton Dimensions
Single Coils Length |
|
Copper tube
outside
(inch) |
diameter
x wall thickness
(mm) |
(20mm) |
(30mm) |
(50mm) |
|
1/4" |
6.35x0.81 |
1 |
46x15x46 |
53x15x53 |
59x19x59 |
|
3/8" |
9.52x0.81 |
1 |
51x15x57 |
58x15x58 |
65x20x65 |
|
1/2" |
12.7x0.81 |
1 |
53x16x53 |
61x16x61 |
70x22x70 |
|
5/8" |
15.88x1.02 |
1 |
65x19x65 |
70x20x70 |
80x24x80 |
|
3/4" |
19.05x1.14 |
1 |
67x19x67 |
74x20x74 |
85x24x85 |

|
|
|
